MPT-IP (MPT1327)

Product range includes - Portables, Mobiles, Repeaters / Base Stations, Systems and SCADA / Telemetry.

MPT-IP (MPT1327) TaitNet MPT Communications Solution

For many analogue has been the mainstay technology for the business radio user. Analogue MPT 1327 systems used to be the most common trunked radio system used and trusted throughout the world for all operations including mission critical. Today digital technologies are displacing analogue systems proved by the success of DMR Digital Mobile Radio. However analogue is still available and still widely in use. CommSystems recognises that network owners and operators still run successful analogue systems and therefore will require equipment and support.

TP8100 Portables

The TP8100 series of conventional and trunked portables set new standards for build quality and industrial design. Waterproof, dustproof and shockproof beyond IP67 and MIL-STD-810F, all models in the TP8100 series deliver outstanding reliability and durability.


Tough enough to withstand the harshest environments; engineered to exceed IP67 sealing: zero dust ingress and immersible in one meter of water for 30 minutes



Light and easy to carry: only 12.13oz (344 grams) with Li-Ion battery



Top-mounted, easy-to-find programmable emergency key and Lone Worker capability improves worker safety



Up to 350 conventional channels with CTCSS/DCS, Selcall and voting/scanning



Trunked MPT features include multiple call types: individual/group/PABX/interfleet and short data messages



Swipe contacts, battery-only or battery-on-radio charging, desktop fast chargers provide efficient battery management

Frequency Bands
136-174MHz
174-225MHz
350-400MHz
400-470MHz
450-530MHz
806-870MHz
896-941MHz



The Toughest Portables in the Industry
Exceeds MIL-STD 810 C, D, E and F and rated waterproof to IP67, delivering communications you can trust.



Output Power
5W, 2.5W, 1W depending on Frequency


TP9300 Portables - Quad Mode Functionality

The TP9300 is a tough portable radio for mission critical communications. Supporting multiple DMR and analog modes, safety-enhancing features, and a rugged, robust design, the TP9300 is engineered to meet the standards of the most demanding industries. With four different operating modes — trunked DMR (Tier 3), conventional DMR (Tier 2), full MPT 1327 and conventional FM — this portable will truly future proof your communications needs.

The TP9300 is built for rugged conditions. Your people need a radio that won't fail them, no matter what the environment. Every Tait Portable is proven to meet Military Standards 810C, D, E, F, and G. Standard TP9300 portables are IP68 and IP65 rated dust-proof, immersible, resistant to water jets and and can survive countless drops onto concrete.


Enhanced Vocoder for call clarity
The TP9300 is equipped with an enhanced vocoder that ensures your message will be communicated clearly, even in a noisy environment. Regardless of wind, equipment, or large groups, you can have confidence that you will be heard.



Man Down
Should someone fall and get hurt, the control center will immediately be notified. An accelerometer recognizes if the TP9300 changes position, and after a few seconds without change a warning will sound. You can save lives by dramatically improving response time if, for any reason, your people fall and cannot call for help.



Full Interoperability
Because DMR is an open standard, you can enjoy choice and interoperability. Tait DMR portables will typically work with your current DMR network or infrastructure. Whatever your existing business systems, CommSystems can help you create a unified critical communications network. Multi-vendor solutions have been known to save as much as 30% of an organization's budget.



Ease of Migrationy
Upgrading a radio network can be so difficult that utility radio networks often remain unchanged for 15 to 20 years. But inevitably, technological and regulatory advances will drive your decision to replace the network. Thanks to quad-mode functionality, Tait has made migration easier than ever before. Since the TP9300 can run in analog mode, you can replace your old system with your new one at a pace that suits your needs.



(TP9361) Globally recognized Intrinsically Safe
The TP9361 portable is designed and tested to meet global IS standards, ensuring safe operation in hazardous environments. It is made in the internationally recognized blue color for Intrinsically Safe portables, ensuring instant recognition in the field.



Integrated GPS
Each portable is equipped with location service ability. That means you'll never need to worry about being lost or left behind. Caught in a storm? Control Center will know exactly where you are and where to send help.

Frequency Bands
VHF: 136-174MHz,
UHF: 320-380MHz (G1), 400-470MHz (H5), 450-520MHz (H7),
700/800: 757-870MHz,
900: 896-941MHz



The Toughest Portables in the Industry
Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP65 spray proof and IP68 waterproof casing. Operating temperature of 14ºF to 140ºF (-10ºC to 60ºC).



Output Power
5W, 3W, 2.5W, 2W, and 1W options depending on Frequency



Channels/Zones
1,500 channels / 26 zones for TP9300 and 16 channels / 1 zone for TP9310

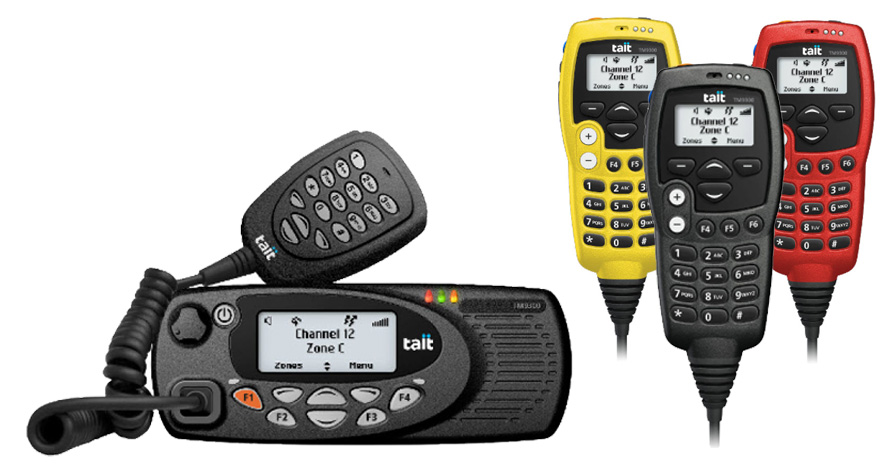

TM9300 Mobile Radio - Quad Mode Functionality

Tait mobile radios are designed for use in challenging conditions and offer industry-leading voice and data, superb usability, and secure communications. Tait mobiles are available with a wide range of features, offering mission critical organizations improved safety and efficiency. The Tait TM9300 is a high-performing, flexible and robust mobile radio that delivers high quality audio and intuitive operation to users around the world. Multiple modes of operation include trunked DMR, conventional DMR, MPT 1327, and conventional FM. Supercharge your communications with UnifyVehicle, available on the TM9300.


Increased Worker Safety
Worker safety is the top priority for our customers, which is why Lone Worker is standard on every TM9300. Emergency calls have priority access to the network, and crystal-clear voice helps users to understand each other. GPS and Location Services give dispatch the knowledge of where to send help when it's needed, and send it fast.



Increased Business Efficiency
The voice and data capabilities of the TM9300 provide many avenues for improving efficiency. Send short, pre-defined data messages for location or status. Location Services helps you pinpoint the location of a problem and find nearby staff who can help, improving response time.



Quad-Mode for a simple migration
Each TM9300 is capable of four different modes: Analog Conventional, MPT-1327, DMR Tier 2, and DMR Tier 3. This makes the migration process easier than ever before - start migrating by installing TM9300s that operate in analog mode. Once your DMR network is built, each TM9300 can easily switch to digital.



Tait UnifyVehicle Ready
Both new and existing TM9300s can be upgraded with UnifyVehicle, which loads your mobile radio with more computing power, WiFi, wireless broadband, and more. Increase productivity and safety with more connectivity, powerful new applications, and comprehensive APIs



A range of configurable models and accessories
The TM9300 has a range of control heads, including a Hand Held Control Head or a Graphical Control Head (single or dual). Each option is capable of local or remote operation. There are also multiple color options, to make it easier for workgroups to identify the right equipment.



Tait Tough
The TM9300 has a rugged build with an IP54 rating, water-resistant control head, and exceeds relevant MIL-STD-810G tests for vibration, shock, humidity, and more.

Frequency Bands
VHF 136-174MHz
UHF 320-380MHz (G1), UHF 400-470MHz (H5), UHF 450-520MHz (H7),
700/800MHz from 757-870MHz, and 900MHz from 896-941MHz.



Tait Tough
Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP54 Water resistant casing. Operating temperature of 22ºF to 140ºF (-30ºC to 60ºC).



Output Power
25W and High Power Models Available



Talk Groups
26 talk group lists comprised of up to 1,000 - 2,000 members each



Channels/Zones
1,500 channels / 26 zones for TM9300 and 100 channels / 1 zone for TM9315

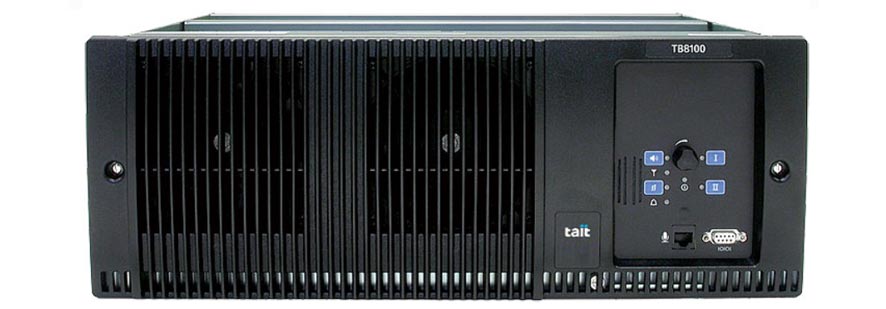

TB8100 Base Stations/Repeaters

The TB8100 is a high performance base station/repeater designed to cope with the harshest of operational environments. Ideal for any application from a simple conventional repeater to advanced TaitNet Quasi Sync and MPT 1327 trunked systems. Featuring remote monitoring and configuration as well as a powerful local control application it is available in 5, 50 and 100W configurations in a range of popular frequency bands.


- 255 channels with up to 16 CTCSS and DCS sub-audible tones per channel, making it suitable for use as a community repeater without requiring additional equipment*
- Covers key frequency bands from 136MHz to 941MHz
- Tone on idle and CWID
- Several system interface options including Isolated Audio, Isolated Audio E&M, TaitNet MPT Trunked, TaitNet RS232 and TaitNet Ethernet
- An Ethernet system interface option enables IP management of user's communications system
- High specification base station/repeater design
- Fast key-up time of 2ms
- Monitor 43 alarm parameters remotely
- Computer Controlled Interface (CCI) protocol allows external computer equipment to remotely monitor and control a TB8100 base station/repeater
- Power save option ideal for solar sites with receive power as low as 60mA
A built-in spectrum analyzer measures received signal levels across the selected band
* Advanced Profiles option required

Frequency Bands
VHF: 136-156MHz (B2), 148-174MHz (B3), 216-225MHz (C3) 100W only
UHF: 330-380MHz (G4) 50W only, 400-440MHz (H1), 440-480MHz (H2), 470-520MHz (H3)
700/800MHz: Tx:762-870MHz Rx: 794-824MHz (K4), Tx: 757-758MHz Rx:787-788MHz (K8) 100W only
900MHz: Tx: 927-941 MHz Rx: 896-902 MHz (L2) 100W only



Output Power
50W - Programmable 5-50W
100W - Programmable 10-100W



Talk Groups
26 talk group lists comprised of up to 1,000 - 2,000 members each



Dimensions
Single 5/50W: 45lb (21kg)
Single 100W: 47lb (22kg)
Dual 5/50W: 61lb (28kg)

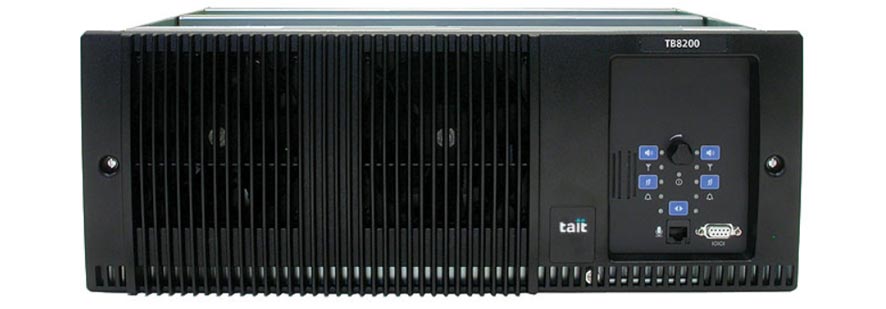

TB8200 Base Stations/Repeaters

Demonstrating Tait's commitment to trusted TaitNet MPT 1327 technology, the TB8200 is the base station/repeater at the heart of the solution. Building on the reliability and performance of the intelligent TB8100, added channel management functionality provides two integrated TaitNet MPT 1327 channels in each base station/repeater. By combining channel management and base station/repeater functions, the TB8200 simplifies the TaitNet MPT 1327 solution, minimizing system deployment and maintenance costs.

The TB8200 is designed to deal with harsh conditions. Specified to operate continuously at full power, at up to 15,000ft (4,572m) in temperatures as high as 140˚F (60˚). Large heatsinks and front-to-back fan cooling methods mean that no spacing is required between base stations/repeaters. Having a common hardware platform allows seamless migration from the TB8200 to digital technologies, including DMR (Digital Mobile Radio) and P25.


- Non-proprietary open standard
- Seamlessly integrates into TaitNet MPT networks
- Provides up to two TaitNet MPT 1327 channels in one TB8200
- Software licenses for additional capability/features and remote programming reduces the need for site visits and hardware upgrades
- TB8200 Base Station/Repeater features include:
- Proven RF platform
- Ethernet system interface enables IP management of communications system SNMP management support option
- Best-in-class reliability - the choice for critical applications
- Scalable - equally suited to single and multi-site systems
- Smart AC/DC switching to ensure continuity of service
- Built-in test equipment provides self-monitoring with local and remote alarm logging
- 4-Wire/IP
- Covers key frequency bands from 136MHz to 800MHz

Frequency Bands
136–156MHz
148-174MHz
174-193MHz
193-225MHz
380-420MHz
400-440MHz
440-480MHz
470-520MHz



Output Power
50W - Programmable 5-50W
100W - Programmable 10-100W



Dimensions: (DxWxH)
Single 5/50W: 47.4lb (21.5kg)
Single 100W: 50.3lb (22.8kg)
Dual 5/50W: 63.1lb (28.6kg)



Channels/Zones
1,000



TB7300 - IP connected, base station for MPT-IP, Analog, DMR Tier 2 and Tier 3

The Tait TB7300 is a software flexible, rugged base station/repeater for DMR Tier 3 and DMR Tier 2 systems, or Analog repeaters. The TB7300 integrates seamlessly with the proven Tait 9300 series high performance base station. Its slim, 1U design forms part of an intelligent building block of an end-to-end network solution, which includes base stations, terminals and Tait network management software applications.


Conveniently Compact
The slim 1U TB7300 is easy to transport and install; an ideal choice when space for RF equipment is limited. It operates as an analog or DMR repeater, and is an economical solution with real estate savings.



High Performance
The TB7300 is a Base station/Repeater with a high performance Base Station receiver. Your organization will enjoy excellent audio quality when transmitting and receiving audio. Like our other products, it is engineered to the Tait Tough quality and performance.



Future Proof
The TB7300 has a powerful processing engine, designed to meet future needs. It supports road-mapping and regular firmware updates, as well as easy remote updating.



A future-defensive investment
The TB7300 is a cost-effective base station/repeater that can operate in DMR Tier 2 mode, with two available voice channels, or DMR Tier 3 single-site trunking mode for even better resource management. It also supports analog conventional mode (repeater only). You can change from one mode of operation to another, providing you with the upgrade flexibility should this be required in the future.



Network Data Services
The TB7300 supports current and future data services, embedded location data, and short data messages for location, status and text. It also increases efficiency by supporting packet data for workforce management, Telemetry, SCADA and customer specific applications.



Efficient power consumption
The TB7300 operates with reduced power demand and is very efficient in the Tait Tier 2 Multisite System with Tait terminals.



Integrated solution component
The Tait TB7300 is an element of global network architecture, and part of a TN9300 system. It supports all major expected features, including TaitEnable suite, the 9300 series equipment, all Tait DMR partner solutions (dispatch consoles/voice recorders, location solutions, multi-network connectivity and many others.)

Frequency Bands
VHF: 148 - 174 MHz
UHF: 400-470MHz and 470-520MHz



Tait Tough
Military Standards for altitude, humidity, vibration and shock. Operating temperature of -22º to 140ºF (-30º to 60ºC).



Output Power
VHF: Programmable 2 - 50W
UHF: Programmable 2 - 40W



Dimensions: (DxWxH)
15.8 x 19 x 1.7in (400 x 483 x 44mm) 1U Rack Space
Weight lb (kg) 14.8lb (6.7kg)



Channels/Zones
1,000


TaitNet MPT Trunked Networks

Over the years, TaitNet MPT has been extensively developed to the leading trunked radio communication system it is today. Anticipating the changes in the market, flexibility, scalability and modularity have been developed into the TaitNet MPT range in readiness for changing business needs and emerging digital technologies. MPT is the most successful trunked mobile radio technology deployed and Tait has a long and distinguished track record in developing this technology, offering the MPT-IP (MPT 1327) trunking network. The benefits of control, efficiency and cost-effectiveness have been proven. Tried and tested technology eases migration, low operating and maintenance costs reduces the overall cost of ownership, whilst ease of integration with third party equipment improves flexibility. Continuing innovation from Tait ensures your choice is well-supported in the long term.


Highlights:
- Tried and tested technology
- Seamless migration, on your terms
- Lower cost of ownership
- Scalability and flexibility
- Full range of terminals/subscriber units available
- IP-based infrastructure
- High-performance

Protecting your investment is extremely important - and CommSystems recognizes this. Our strong focus is to provide our customers with high performing solutions which are also future-proof. This means that our systems are scalable to meet the ever changing business environment, flexible to add functionality for greater efficiency and offer seamless migration to new technologies when business or regulatory demands require it. Buy for today's needs and upgrade tomorrow. Lower Cost of Ownership.

With simplified network design, open standards, tailored support and maintenance packages, remote diagnostics and legacy system support within one cost-effective solution, TaitNet MPT lowers the overall cost of ownership. Scalability/Flexibility.

TaitNet MPT can grow to meet future needs because of its modular structured platform. Ultimate flexibility with legacy 4 Wire support into the IP backbone of MPT-IP lets you choose how to implement your radio system as time and budget allows. Full range of terminals/subscriber units.

The TaitNet MPT system conforms fully to the MPT 1327 standard and will support other manufacturers MPT 1327 mobiles and portables. Specifying the right equipment for the task is only part of the challenge.

CommSystems people can ensure your communications solution is designed, deployed and supported in ways that are right for your needs. Beyond specifying the right equipment, there are complex factors that must be considered: ensuring positive user adoption, leveraging current radio assets, managing upgrades, coverage assurance.

While you concentrate on mission-critical operations, serving your customers and protecting your ROI, let Tait focus on resolving your communications issues. Our skilled, experienced people know what it means to deliver value-adding services that mitigate risk, enhance your network performance and ensure your workers' safety.
